Description
- Silice fondue indice UV
- Gamme de longueurs d’onde de 200 à 2,2 µm
- Différentes options de traitement disponibles : MgF2, UV-AR, UV-VIS, VIS-EXT, VIS-NIR, VIS 0°, YAG-BBAR, NIR I et NIR II

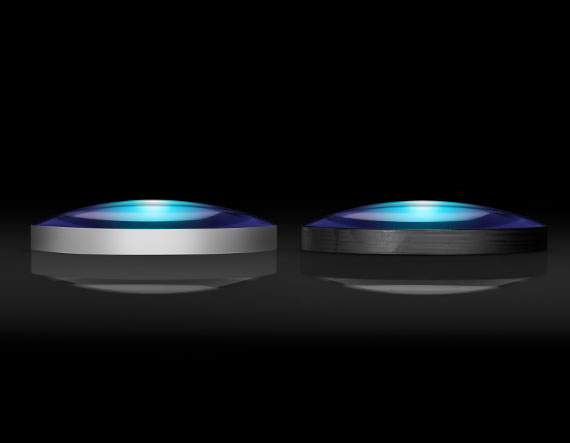

Les Lentilles Plan-Convexes (PCX) en Silice Fondue UV Non Traitées TECHSPEC® présentent des spécifications de précision et une variété d’options de traitement sur un substrat à large bande. La silice fondue est couramment utilisée dans des applications allant de l’ultraviolet (UV) au proche infrarouge (NIR). Son faible indice de réfraction, son faible coefficient de dilatation thermique et sa faible teneur en inclusions la rendent idéale pour les applications laser et les conditions environnementales difficiles. Les Lentilles Plan-Convexes (PCX) en Silice Fondue UV Non Traitées TECHSPEC® présentent des spécifications de centrage et de diamètre à la pointe de l’industrie, ce qui les rend idéales pour l’intégration dans des applications d’imagerie et de ciblage exigeantes.
Informations techniques
UV FS Transmission Curve
| FUSED SILICA | |
|
Typical transmission of a 3mm thick, uncoated fused silica window across the UV – NIR spectra. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with MgF2 (400-700nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Ravg ≤ 1.75% @ 400 – 700nm (N-BK7) Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with UV-AR (250-425nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Rabs ≤ 1.0% @ 250 – 425nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with UV-VIS (250-700nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Rabs ≤ 1.0% @ 350 – 450nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with VIS-EXT (350-700nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Ravg ≤ 0.5% @ 350 – 700nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with VIS-NIR (400-1000nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Rabs ≤ 0.25% @ 880nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with VIS 0° (425-675nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Ravg ≤ 0.4% @ 425 – 675nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with YAG-BBAR (500-1100nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Rabs ≤ 0.25% @ 532nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with NIR I (600 – 1050nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Ravg ≤ 0.5% @ 600 – 1050nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
|
|
Typical transmission of a 3mm thick fused silica window with NIR II (750 – 1550nm) coating at 0° AOI. The blue shaded region indicates the coating design wavelengh range, with the following specification: Rabs ≤ 1.5% @ 750 – 800nm Data outside this range is not guaranteed and is for reference only. Click Here to Download Data |
